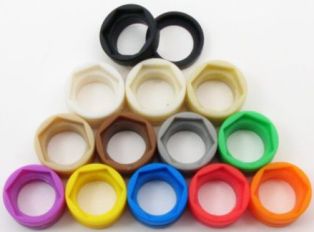

Isolation Washers 3/8" Hex to 1/2"D

Isolation Washers 3/8 to 1/2
Connector, Nut & Washer with Isolation Washer

Connector inserted into hex-shaped isolation washer front.

Connector with isolation washer front inserted into panel,
or plate, then rear of isolation washer added - then the
connector's washer (if applicable) and nut attached.

Common Questions & Answers
Question Answer
Question Mark What are isolation washers? Isolation washers are designed to surround the mounting surface area of a connector.
The connector fits inside the hex shaped front part of the washer and is then inserted into the mounting hole
of the panel, or plate - the rear of the washer is then installed, followed by the connector's washer and/or nut.
This non-conductive mounting washer provides insulation from the panel and all other connectors.
Most 3/8" Round, 3/8" D and 3/8" DD connectors that have a hex shaped swage will fit in these washers.
These washers will then fit most 1/2" D or 1/2" Double D mounting holes.

Isolation Washers - 3/8" to 1/2"
Picture Stock Number Description Price Each Qty. Discounts Enter Quantity & Order Weight D-Code
Almond Isolation Washers 3/8 to 1/2 AC-WA-3812-AL Isolation Washer - 3/8 to 1/2 - Almond $.39 100+  $.35 ea.

.01 1
Black Isolation Washers 3/8 to 1/2 AC-WA-3812-BK Isolation Washer - 3/8 to 1/2 - Black $.39 100+  $.35 ea.

.01 1
Blue Isolation Washers 3/8 to 1/2 AC-WA-3812-BL Isolation Washer - 3/8 to 1/2 - Blue $.39 100+  $.35 ea.

.01 1
Brown Isolation Washers 3/8 to 1/2 AC-WA-3812-BR Isolation Washer - 3/8 to 1/2 - Brown $.39 100+  $.35 ea.

.01 1
Green Isolation Washers 3/8 to 1/2 AC-WA-3812-GN Isolation Washer - 3/8 to 1/2 - Green $.39 100+  $.35 ea.

.01 1
Gray Isolation Washers 3/8 to 1/2 AC-WA-3812-GR Isolation Washer - 3/8 to 1/2 - Gray $.39 100+  $.35 ea.

.01 1
Ivory Isolation Washers 3/8 to 1/2 AC-WA-3812-IV Isolation Washer - 3/8 to 1/2 - Ivory $.39 100+  $.35 ea.

.01 1
Orange Isolation Washers 3/8 to 1/2 AC-WA-3812-OR Isolation Washer - 3/8 to 1/2 - Orange $.39 100+  $.35 ea.

.01 1
Purple Isolation Washers 3/8 to 1/2 AC-WA-3812-PU Isolation Washer - 3/8 to 1/2 - Purple $.39 100+  $.35 ea.

.01 1
Red Isolation Washers 3/8 to 1/2 AC-WA-3812-RD Isolation Washer - 3/8 to 1/2 - Red $.39 100+  $.35 ea.

.01 1
Tan Isolation Washers 3/8 to 1/2 AC-WA-3812-TN Isolation Washer - 3/8 to 1/2 - Tan $.39 100+  $.35 ea.

.01 1
White Isolation Washers 3/8 to 1/2 AC-WA-3812-WH Isolation Washer - 3/8 to 1/2 - White $.39 100+  $.35 ea.

.01 1
Yellow Isolation Washers 3/8 to 1/2 AC-WA-3812-YE Isolation Washer - 3/8 to 1/2 - Yellow $.39 100+  $.35 ea.

.01 1

The 2 piece washer below fits any 3/8" D or Double D connector and most 1/2" D or 1/2" Double D mounting holes.

Isolation Washers - 3/8" D to 1/2" D
Picture Stock Number Description Price Each Qty. Discounts Enter Quantity & Order Weight D-Code
Isolation Washers 3/8D to 1/2D Isolation Washers 3/8D to 1/2D AC-WA-3812 Isolation Washer - 3/8D to 1/2D $.39 100+  $.35 ea.

.01 1
