Canare BCJ-JR 75 Ohm HD BNC Bulkhead Panel Mounts

Common Questions & Answers
Question Answer
Hole size explanation? For an explanation of the noted hole sizes and why they may matter - Click Here.
Other BNC Items? Cables - Patch Panels - Wall Plates - Floor Boxes - Face Plates - Module Plates - Custom
In Stock? Canare BCJ-JR adapters are generally in stock and ready to ship, but inventory does change daily.
Feel free to contact us to confirm your immediate needs.

75 Ohm BNC JACK NOMINAL SPECIFICATIONS
Bandwidth
VSWR Return Loss DC-2GHz
Center Contact Material Plating Body/ Material Plating Dielectric Insulation Resistance at 500V DC Voltage Rating for 1 Minute Center Contact Resistance Outer Contact Resistance
<1.1
>26dB
Beryllium Copper Gold Brass
Nickel
PTFE >1000 MegaOhms 1500V AC(rms) <6 miliOhms <3 miliOhms

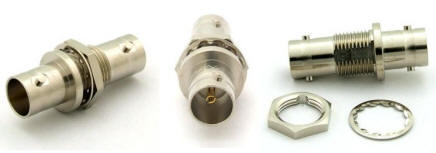

Canare HD BNC Bulkhead BCJ-JR Canare IU7/16 Isolation Washers
True 75 Ohm BNC Isolated Canare BCJ-JR Bulkheads.
For signal types: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, and RGBHV.
Designed to exceed the rigorous demands of today's broadcast environment - exhibiting return losses of less than -26db to 2 GHz

Canare BCJ-JR HD BNC Female to Female Bulkheads - True 75 Ohm Isolated
Picture Stock Number Description Price Each Qty. Discounts Enter Quantity & Order Weight D-Code Fits Hole
Canare BCJ-JR HD BNC Bulkhead 75 Ohm Isolated 1/2D Mount
Shown with Black Washer
BCJ-JR Canare HD BNC Bulkhead - 75 Ohm - Isolated

Does not come with required washer.
Must order washers separately below!

$3.79 100+  $3.60 ea.

.03 2 1/2"D
w/washer
Canare BCJ-JR HD BNC Bulkhead 75 Ohm Isolated XLR Mount BCJ-JRM Canare HD BNC Bulkhead - 75 Ohm Isolated
Mounted to fit XLR D-Series Hole

Comes with black washer.
Order other washer colors below!

$7.57 5+  $7.19 ea.
10+  $7.00 ea.
25+  $6.81 ea.

.06 2 XLR
D-Series
Canare BCJ-JR HD BNC Bulkhead 75 Ohm Isolated Recessed XLR Mount BCJ-JRR Canare HD BNC Bulkhead - 75 Ohm Isolated
Mounted in Recessed Housing
to fit XLR D-Series Hole

Comes with black washer.
Order other washer colors below!

$7.57 5+  $7.19 ea.
10+  $7.00 ea.
25+  $6.81 ea.

.06 2 XLR
D-Series
Canare Isolation Washer - Black IU-7/16-BL Canare Isolation Washer - Black $.29 100+  $.27 ea.

.01 2 1/2"D
Canare Isolation Washer - Blue IU-7/16-BU Canare Isolation Washer - Blue $.29 100+  $.27 ea.

.01 2 1/2"D
Canare Isolation Washer - Green IU-7/16-GR Canare Isolation Washer - Green $.29 100+  $.27 ea.

.01 2 1/2"D
Canare Isolation Washer - Red IU-7/16-RE Canare Isolation Washer - Red $.29 100+  $.27 ea.

.01 2 1/2"D
Canare Isolation Washer - White IU-7/16-WH Canare Isolation Washer - White $.29 100+  $.27 ea.

.01 2 1/2"D
Canare Isolation Washer - Yellow IU-7/16-YE Canare Isolation Washer - Yellow $.29 100+  $.27 ea.

.01 2 1/2"D
