For 1/2" D, 3/8" D, 3/8" Round, 1/4" D, and 1/4" Round hole panels.


Patch Panel Configurations

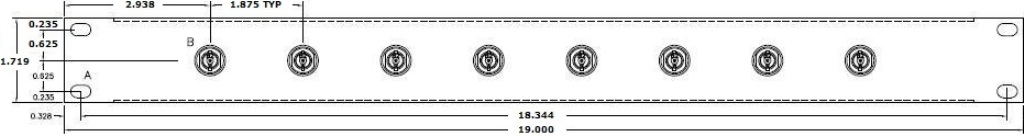

1RU 8 Port (1 row of 8)

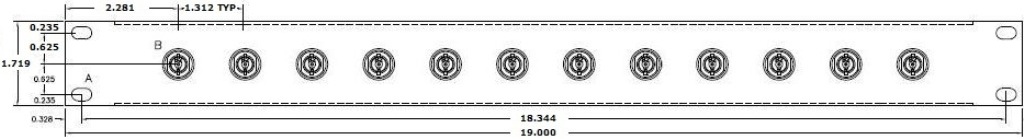

1RU 12 Port (1 row of 12)

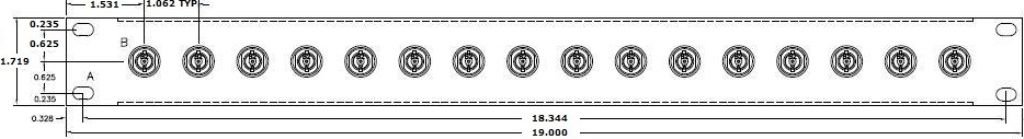

1RU 16 Port (1 row of 16)

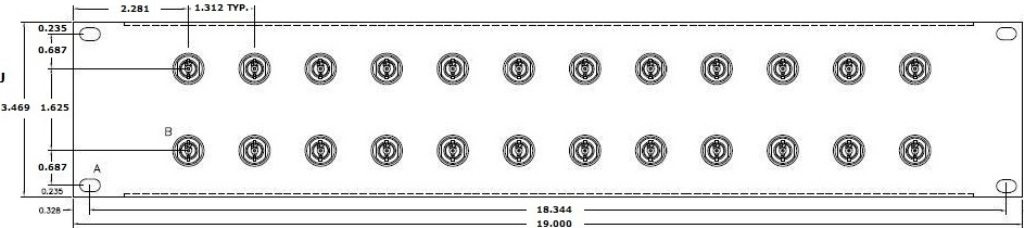

2RU 24 Port (2 rows of 12)

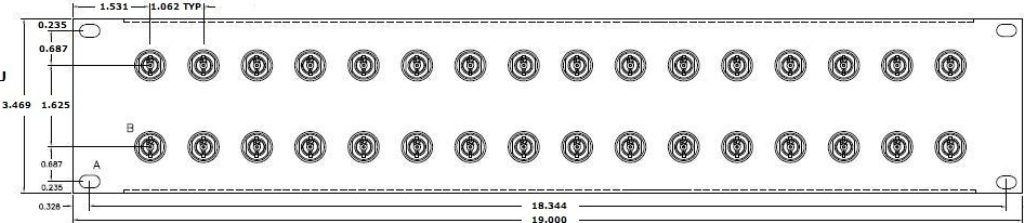

2RU 32 Port (2 rows of 16)
3RU 48 Port (3 rows of 16)

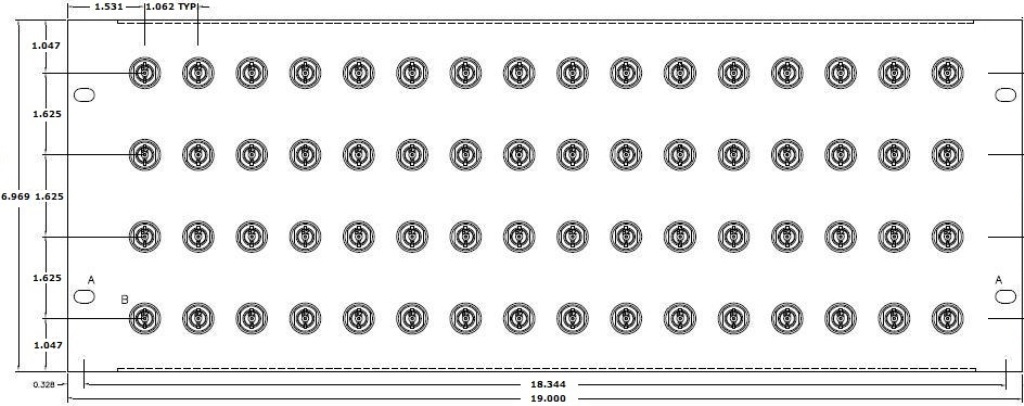

4RU 64 Port (4 rows of 16)

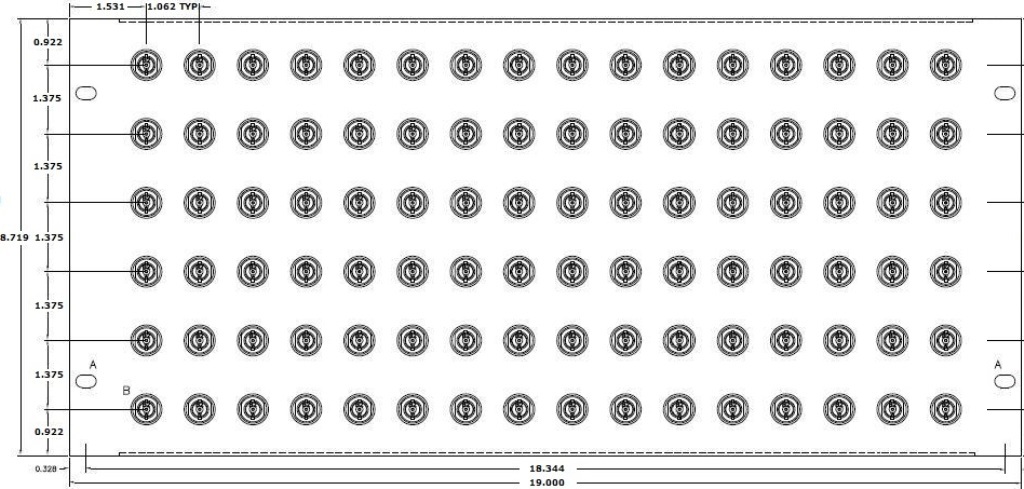

5RU 96 Port (6 rows of 16)

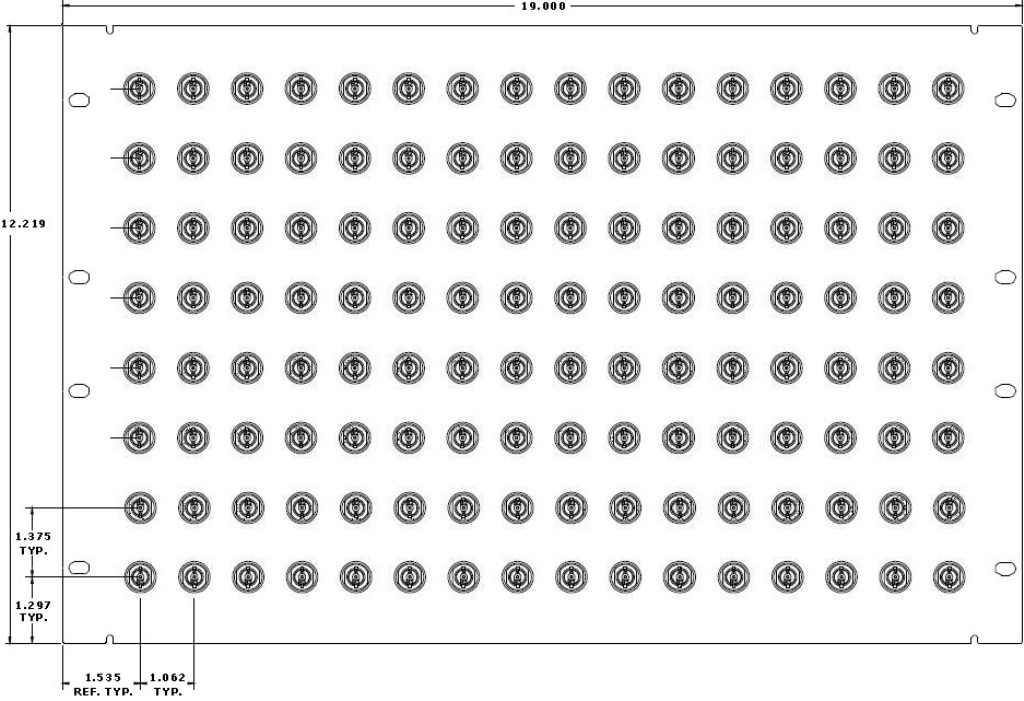

7RU 128 Port (8 rows of 16)

Panel overall sizing & connector hole spacing.
