Wall Plate Mounting Brackets

Wall Plate Mounting Brackets

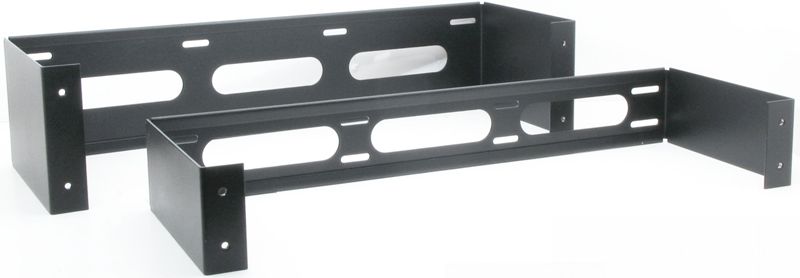

These Wall Brackets allow you to utilize our wall plates in situations where you don't have studs 16" on center,
have a masonry wall, or you simply don't want to cut a large hole as required with the surface mounting solution.

Brackets can be mounted to any type of wall as long as they are anchored securely and properly.

Wall Plate Wall Brackets for 16.75" Wall Plates
Stock Number Description Price Each Qty. Discounts Enter Quantity & Order Weight D-Code
WPB-1 Wall Plate Wall Bracket
For 8 Port Wall Plates
and Adapter Plate Wall Plates
2 1/2" High x 17" Wide
$24.99 5+  $23.74 ea.
10+  $23.12 ea.
25+  $22.49 ea.

1.75 1
WPB-2 Wall Plate Wall Bracket
For 16 Port Wall Plates
4" High x 17" Wide
$29.99 5+  $28.49 ea.
10+  $27.74 ea.
25+  $26.99 ea.

2.38 1
WPB-3 Wall Plate Wall Bracket
For 24 Port Wall Plates &
5 Port Modular Wall Plates
5 1/2" High x 17" Wide
$34.99 5+  $33.24 ea.
10+  $32.37 ea.
25+  $31.49 ea.

3.06 1
WPB-4 Wall Plate Wall Bracket
For 32 Port Wall Plates
7" High x 17" Wide
$39.99 5+  $37.99 ea.
10+  $36.99 ea.
25+  $35.99 ea.

3.81 1
WPB-5 Wall Plate Wall Bracket
For 40 Port Wall Plates
8 1/2"" High x 17" Wide
$44.99 5+  $42.74 ea.
10+  $41.62 ea.
25+  $40.49 ea.

4.63 1
WPB-6 Wall Plate Wall Bracket
For 48 Port Wall Plates &
10 Port Modular Wall Plates
10" High x 17" Wide
$49.99 5+  $47.49 ea.
10+  $46.24 ea.
25+  $44.99 ea.

5.44 1

Bracket Mounting Pictures & Tips
Wall Plate Mounting Bracket Installation 1
For our bracket mount example we are mounting to a stud wall.

We use a stud finder to locate the stud(s) - We mark the stud
location(s) and then mark an area near a stud for a pilot hole.
Wall Plate Mounting Bracket Installation 2
Drill the pilot hole.
Wall Plate Mounting Bracket Installation 3
We make the pilot hole larger. The larger hole will also serve
as a cable port and we repeat this process based on how
many cable ports are going to be needed.
Wall Plate Mounting Bracket Installation 4
We run the cables through the bracket's cable ports.
Attach bracket to wall using proper screws at studs
and wall anchors where no studs are available.
Wall Plate Mounting Bracket Installation 5
We solder our cables and attach the plate to the bracket.
For this we use 10/32 rack screws with captive washers.
Wall Plate Mounting Bracket Installation 6
The complete assembly will protrude from the wall 6" - 6 1/2".

Optional Ideas & Tips
Wall Plate Mounting Bracket Installation 7
A simple 4 sided box can be built & slid over assembly.
Wall Plate Mounting Bracket Installation 8
The complete assembly enclosed in a simple box.
