Panel Mounting the 2921260M

Midi Bulkhead XLR Mount Pic 1

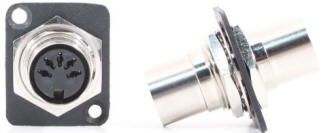

When you receive the 2921260M it will look like this.

Midi Bulkhead XLR Mount Pic 2
Rear view of 2921260M.
Note that the lock washer is larger than most D Series holes.

Midi Bulkhead XLR Mount Pic 3
Remove the nut and lock washer from the rear.

Midi Bulkhead XLR Mount Pic 4

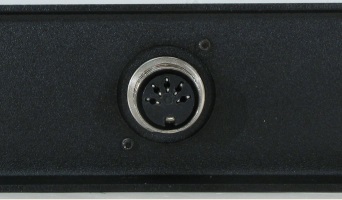

Mount into the front of the panel.

Midi Bulkhead XLR Mount Pic 5
Rear view of the panel after mounting.

Midi Bulkhead XLR Mount Pic 6

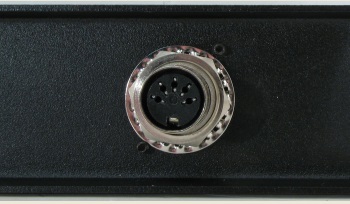

Replace and tighten the lock washer and nut.
