Wiring/Pin Assignments for Neutrik Connectors

NCJ6FIS Wiring XLR/TRS Combo
NCJ6FI-S

3 Pin XLR Wiring NC3FDL NC3MDL
3 Pin XLR

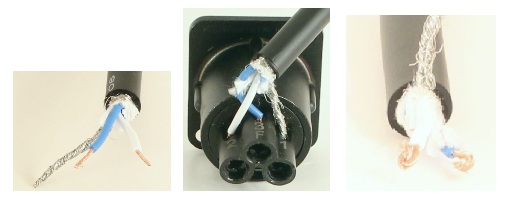

Solderless XLR Wiring NC3FDLS NC3MDLS
Solderless 3 Pin XLR

Strip wire insulation off ¼” - using the proper size stripper tool for your wire gauge.

Insert wire into the appropriate hole and tighten screw to secure wire.
It is important that you choose a screwdriver that is not too large for the opening.
When tightening the screws once resistance is felt STOP - and then only 1/4 turn more to secure.
Over tightening will sheer off the copper wire and you’ll have to start again.

If you're having difficulty securing the wire try removing 3/8” of the insulation and fold the wire over - doubling the amount of copper.

Speakon Wiring
SpeakOn Connectors

NYS229 Wiring Diagram & NYS230 Wiring Diagram
NYS229 and NYS230 Connectors

XLR 3 Pin Cable Ends
XLR 3 Pin Cable Ends
