Rack Ear Extenders

Mount 19" Patch Panels into a 23" Rack - 1RU to 5RU Kits
CLICK FOR MORE EQUIPMENT

Rack Ear Extenders
REE-1
Rack Ear Extenders
REE-2
Mount 19 Inch Patch Panels to a 23 Inch Rack with Rack Ear Extenders

Rack Ear Extenders mounted to 19" Patch Panels allow you to mount the Patch Panels to a 23" Rack.

Common Questions & Answers

1 What are Rack Ear Extenders? - Rack Ear Extenders are used to mount 19" patch panels to 23" racks and enclosures.

2 Mounting Hardware? - REE-KIT is used to mount the patch panel(s) to the Rack Ear Extenders and then to the Rack/Enclosure. These are sold separately due to the multiple panel mounting scenarios.

3 Rack Ear Extenders In Stock? - Rack Ear Extenders are generally in stock and ready to ship, but inventory does change daily. Feel free to contact us to confirm your immediate needs.

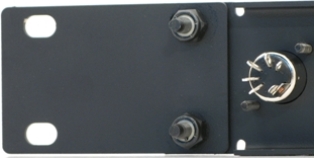

Mounting Hardware Kit

Rack Ear Extender Mounting Hardware Kit

Rack Ear Extender Hardware Mounting Kit

Each kit includes 8 Rack Screws
and 4 Nylon Insert Lock Nuts

1 kit needed per panel to be mounted

Stock Number: REE-KIT

1-4 $1.99 ea.
5+ $1.89 ea.
10+ $1.84 ea.
25+ $1.79 ea.

Enter Quantity

Weight - .06
D Code-1

1RU Rack Ear Extenders

1RU Rack Ear Extenders

1RU Rack Ear Extender - Pair

Extends the rack ears of the following:
Qty.1 1RU 19" panel

Requires 1 REE-KIT hardware kit.

Stock Number: REE-1

1-4 $18.99 ea.
5+ $18.04 ea.
10+ $17.57 ea.
25+ $17.09 ea.

Enter Quantity

Weight - .25
D Code-1

2RU Rack Ear Extenders

2RU Rack Ear Extenders

2RU Rack Ear Extender - Pair

Extends the rack ears of the following:
Qty.1 2RU 19" panel - or
Qty.2 1RU 19" panels

Requires 1 REE-KIT hardware kit
per panel to be mounted.

Stock Number: REE-2

1-4 $19.99 ea.
5+ $18.99 ea.
10+ $18.49 ea.
25+ $17.99 ea.

Enter Quantity

Weight - .50
D Code-1

3RU Rack Ear Extenders

3RU Rack Ear Extenders

3RU Rack Ear Extender - Pair

Extends the rack ears of the following:
Qty.1 3RU 19" panel - or
Qty.3 1RU 19" panels - or
Qty.1 2RU & 1 1RU 19" panels

Requires 1 REE-KIT hardware kit
per panel to be mounted.

Stock Number: REE-3

1-4 $20.99 ea.
5+ $19.94 ea.
10+ $19.42 ea.
25+ $18.89 ea.

Enter Quantity

Weight - .75
D Code-1

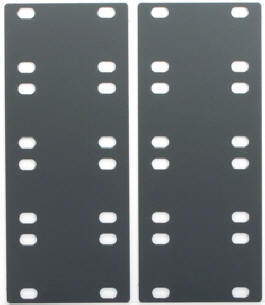

4RU Rack Ear Extenders

4RU Rack Ear Extenders

4RU Rack Ear Extender - Pair

Extends the rack ears of the following:
Qty.1 4RU 19" panel - or
Qty.4 1RU 19" panels - or
Qty.2 2RU 19" panels - or
Qty.1 2RU & 2 1RU 19" panels - or
Qty.1 3RU & 1 1RU 19" panels

Requires 1 REE-KIT hardware kit
per panel to be mounted.

Stock Number: REE-4

1-4 $21.99 ea.
5+ $20.89 ea.
10+ $20.34 ea.
25+ $19.79 ea.

Enter Quantity

Weight - 1.00
D Code-1

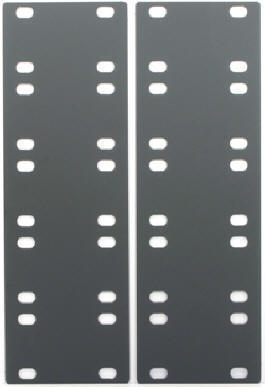

5RU Rack Ear Extenders

5RU Rack Ear Extenders

5RU Rack Ear Extender - Pair

Extends the rack ears of the following:
Qty.1 5RU 19" panel - or
Qty.5 1RU 19" panels - or
Qty.2 2RU & 1 1RU 19" panels - or
Qty.1 3RU & 1 2RU 19" panels - or
Qty.1 4RU & 1 1RU 19" panels - or
Qty.1 3RU & 2 1RU 19" panels

Requires 1 REE-KIT hardware kit
per panel to be mounted.

Stock Number: REE-5

1-4 $22.99 ea.
5+ $21.84 ea.
10+ $21.27 ea.
25+ $20.69 ea.

Enter Quantity

Weight - 1.00
D Code-1

Mounting Hardware Kit

Rack Ear Extender Mounting Hardware Kit

Rack Ear Extender Hardware Mounting Kit

Each kit includes 8 Rack Screws
and 4 Nylon Insert Lock Nuts

1 kit needed per panel to be mounted

Stock Number: REE-KIT

1-4 $1.99 ea.
5+ $1.89 ea.
10+ $1.84 ea.
25+ $1.79 ea.

Enter Quantity

Weight - .06
D Code-1

Mounting Instructions

Rack Ear Extender Mounting Example 1

Step 1: Place the Rack Ear Extenders behind the 19" Patch Panel's ears and insert 2 Rack Screws through the front of the panel and through the rack ear extenders (both ends of the panel).

Rack Ear Extender Mounting Example 2

Step 2: Tighten with the Nylon Insert Lock Nuts (both ends of the panel).

Rack Ear Extender Mounting Example 3

Step 3: Mount the panel as normal into a 23" rack.
