Adapter Plate Wall Plate Surface Mounting

Adapter Plate Wall Plates can be surface mounted to a wall that has studs 16" on center.

Surface Mounting

Surface mounting will require cutting a hole in the wall approximately 1 1/4" High x 13" Wide to accommodate the cables and connectors.

Step 1

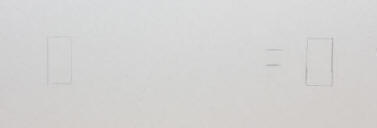

Adapter Plate Wall Plate Surface Install 1

For Surface mounting you need to mount between 2 studs.
We use a stud finder to locate the studs - We mark the stud
locations and then mark an area near a stud for a pilot hole.

Step 2

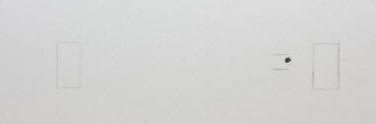

Adapter Plate Wall Plate Surface Install 2

Drill the pilot hole.

Step 3

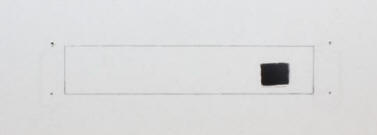

Adapter Plate Wall Plate Surface Install 3

We make the pilot hole larger to verify stud location and
make sure there are no issues before making the hole full size.
We mark out our rough opening and mounting holes.

Step 4

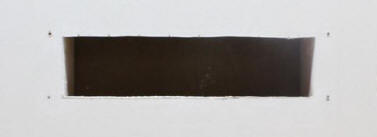

Adapter Plate Wall Plate Surface Install 4

We cut out the rough opening.

Step 5

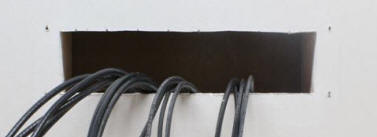

Adapter Plate Wall Plate Surface Install 5

We run the cables through our opening.

Step 6
Adapter Plate Wall Plate Surface Install 6

We solder our cables and attach the plate to the wall.
We use screws suitable for that type of wall and studs.

Step 7
Adapter Plate Wall Plate Surface Install 7

The wall plate is flush to the wall.

Step 8 (Optional)
Adapter Plate Wall Plate Surface Install 8

Surface Mount Wall Plates can be trimmed out.
