HOME - MAIN MENU - CONNECTORS AND ADAPTERS MAIN MENU - XLR CONNECTOR AND ADAPTER MENU - XLR CONNECTORS - PANEL MOUNT SOLDER

XLR Panel Mounts - Solder Points Rear

CLICK FOR MORE XLR CONNECTORS AND ADAPTERS

Common Questions & Answers

1 Other XLR Connectors and Adapters? - XLR Connector and Adapter Menu

2 Connector Wiring Diagram? - Neutrik Wiring Diagrams

3 What does Nickel/Silver, Black/Silver, Black/Gold, etc. mean? - This refers to the color of the connector shell and the solder pins.

4 Mounting Hole size explanation? - Why the mounting hole sizes are noted - Hole Specs

5 XLR Connectors In Stock? - XLR Panel Mount Solder Connectors are generally in stock and ready to ship, but inventory does change daily. Feel free to contact us to confirm your immediate needs.

Neutrik 3 Pin XLR Panel Mount Solder Connectors

3 Pin Female XLR
Nickel/Silver

NC3FD-L-1 XLR 3 Pin Female Panel Mount Solder Point NC3FD-L-1 XLR 3 Pin Female Panel Mount Solder Point - Rear

Stock Number: NC3FD-L-1

1-99 $4.49 ea.
100+ $4.27 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Male XLR
Nickel/Silver

NC3MD-L-1 XLR 3 Pin Male Panel Mount Solder Point NC3MD-L-1 XLR 3 Pin Male Panel Mount Solder Point - Rear

Stock Number: NC3MD-L-1

1-99 $4.49 ea.
100+ $4.27 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Female XLR
Black/Silver

NC3FD-L-BAG-1 XLR 3 Pin Female Panel Mount Solder Point NC3FD-L-BAG-1 XLR 3 Pin Female Panel Mount Solder Point - Rear

Stock Number: NC3FD-L-BAG-1

1-99 $4.99 ea.
100+ $4.74 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Male XLR
Black/Silver

NC3MD-L-BAG-1 XLR 3 Pin Male Panel Mount Solder Point NC3MD-L-BAG-1 XLR 3 Pin Male Panel Mount Solder Point - Rear

Stock Number: NC3MD-L-BAG-1

1-99 $4.99 ea.
100+ $4.74 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Female XLR
Black/Gold

NC3FD-L-B-1 XLR 3 Pin Female Panel Mount Solder Point NC3FD-L-B-1 XLR 3 Pin Female Panel Mount Solder Point - Rear

Stock Number: NC3FD-L-B-1

1-99 $5.29 ea.
100+ $5.03 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Male XLR
Black/Gold

NC3MD-L-B-1 XLR 3 Pin Male Panel Mount Solder Point NC3MD-L-B-1 XLR 3 Pin Male Panel Mount Solder Point - Rear

Stock Number: NC3MD-L-B-1

1-99 $5.29 ea.
100+ $5.03 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Female XLR
Black Plastic/Silver

NC3FPP XLR 3 Pin Female Panel Mount Solder Point NC3FPP XLR 3 Pin Female Panel Mount Solder Point - Rear

Stock Number: NC3FPP

1-99 $2.39 ea.
100+ $2.27 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

3 Pin Male XLR
Black Plastic/Silver

NC3MPP XLR 3 Pin Male Panel Mount Solder Point NC3MPP XLR 3 Pin Male Panel Mount Solder Point - Rear

Stock Number: NC3MPP

1-99 $2.39 ea.
100+ $2.27 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .06
D Code-2

Neutrik 3 Pin XLR Panel Mount RF Screening Solder Connectors

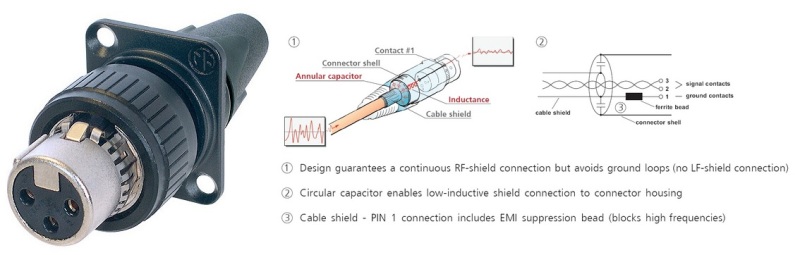

NC3FDX-EMC-SPEC XLR 3 Pin Female Panel Mount RF Screening Solder Point

The EMC-XLR Series provides enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones.
The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield.
The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.
An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.
Features:
3 pole female XLR panel mount connector with integrated capacitive shield to shell connection
Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
Circumferential ground spring providing an accurate connection to the mating shell
Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
Avoid ground loops as there is no LF-shield connection to ground
Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables
Boot with rubber gland gives high protection against bending stresses

Stock Number: NC3FDX-EMC-SPEC

1-99 $21.99 ea.
100+ $20.89 ea.

Enter Quantity

Mounting Hole - D Series
Weight - .15
D Code-2
